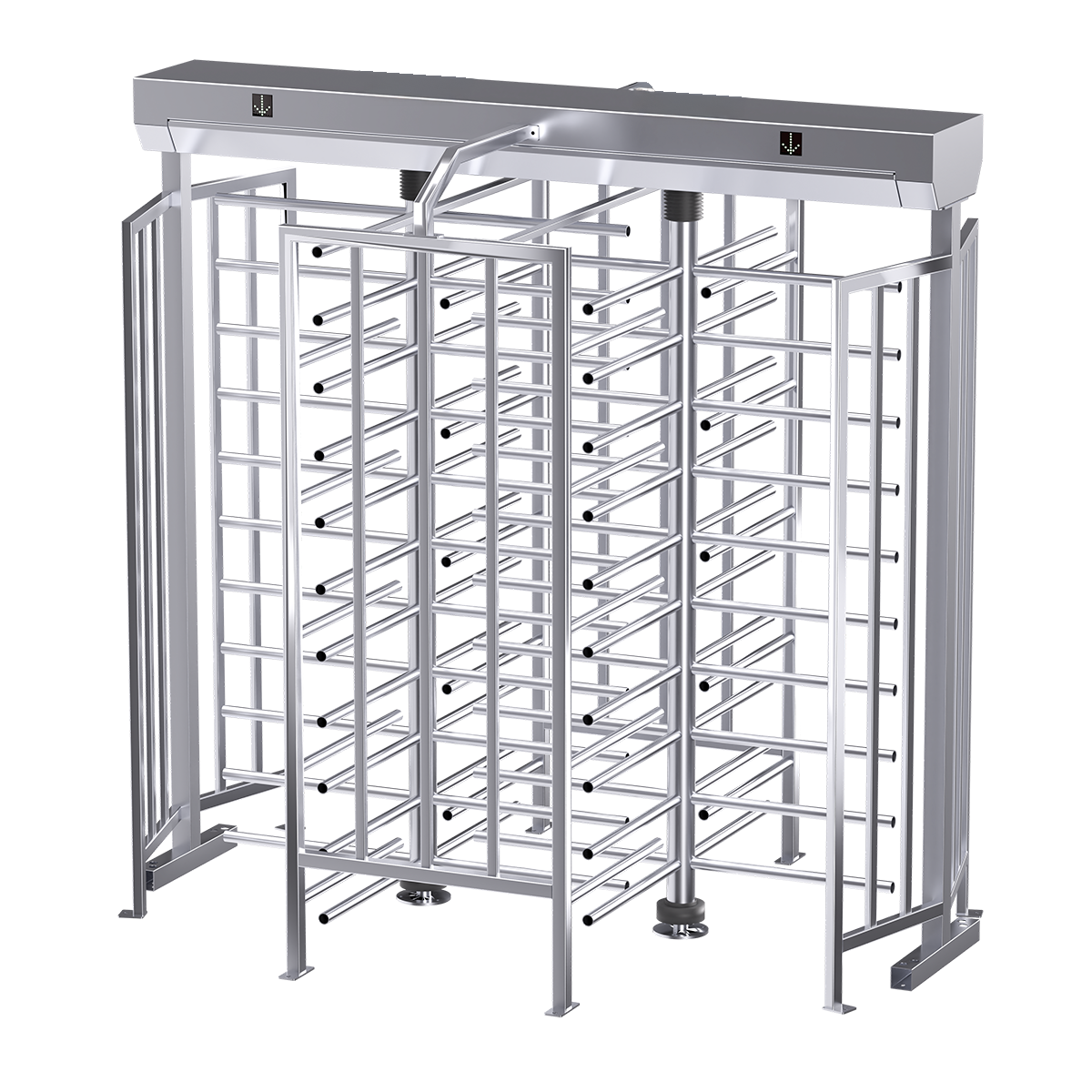

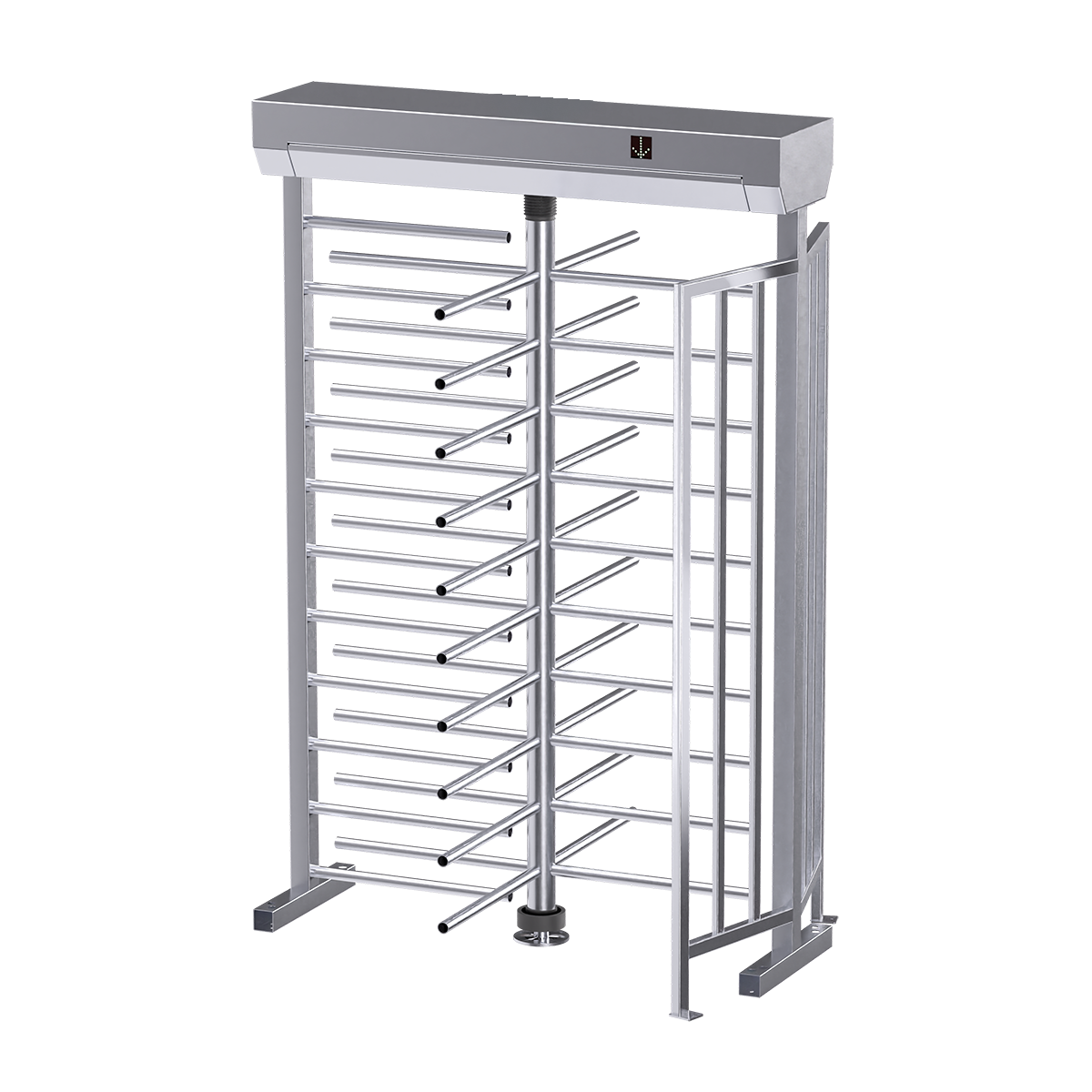

BL 1-4 and BL 2-4 full-height turnstiles are durable access control devices equipped with a four-arm rotor. Designed for both indoor and outdoor use, they are available in stainless steel or zinc-coated carbon steel, with optional powder coating in any RAL color.

The turnstiles feature a motorized mechanism that supports the rotor movement, ensuring smooth and user-friendly operation. This proven and robust design is ideal for perimeter access control on construction sites (also available as a mobile gate on a platform), industrial facilities, and other locations requiring reliable pedestrian control.

Turnstiles with a four-section rotor allow for tighter control of pedestrian access.

Technical Specification

Usage Location indoor / outdoor
Operating Temperature, Humidity -25°C/+50°C (optionally -50°C with heater), relative humidity 80% non-condensing.
Operating Intensity Continuous operation 24/7
Available Mechanisms
Mechanism Operation Method
ZA3 motorized
GA3 mechanical-hydraulic
MA3 mechanical
Pictograms / Lighting Status / Direction Indicators: LED, standard/pictograms
Power Supply Operating Voltage: 24V DC. Power Consumption: ~14W in standby mode, max. ~180W (depending on used options and accessories).
Operating Modes
  • Controlled entry and exit
  • Controlled entry, free exit
  • Free entry, controlled exit
  • Single entry, use in both directions
  • Free entry and exit
Control System All functions, parameters, and operating modes can be changed via LED display and control panel manipulator.
Throughput Passage capacity: max. 40 cycles/min. Nominal: ~20 passages/min. for single passage
Emergency Mode The system allows free flow (entry-exit) in both directions (emergency mode).
Power Failure The system allows free flow in both directions (safe open mode).
Weight ~180 kg  BL 1-3 / 320 kg for BL2-3
Optional Features, Accessories Counter (with/without reset), card reader mounting bracket, roof, platform.

Product images

View All Products

BL 1-3

Full-height turnstile with a three-section rotor

BL

BL turnstiles installed at the sports stadium

BL

BL turnstiles installed at the sports stadium

BL

BL turnstiles installed at the sports stadium

BL

BL turnstile installed in the perimeter fence of the workplace

BL

BL turnstile

BL

BL turnstile installed in the perimeter fence of the workplace
