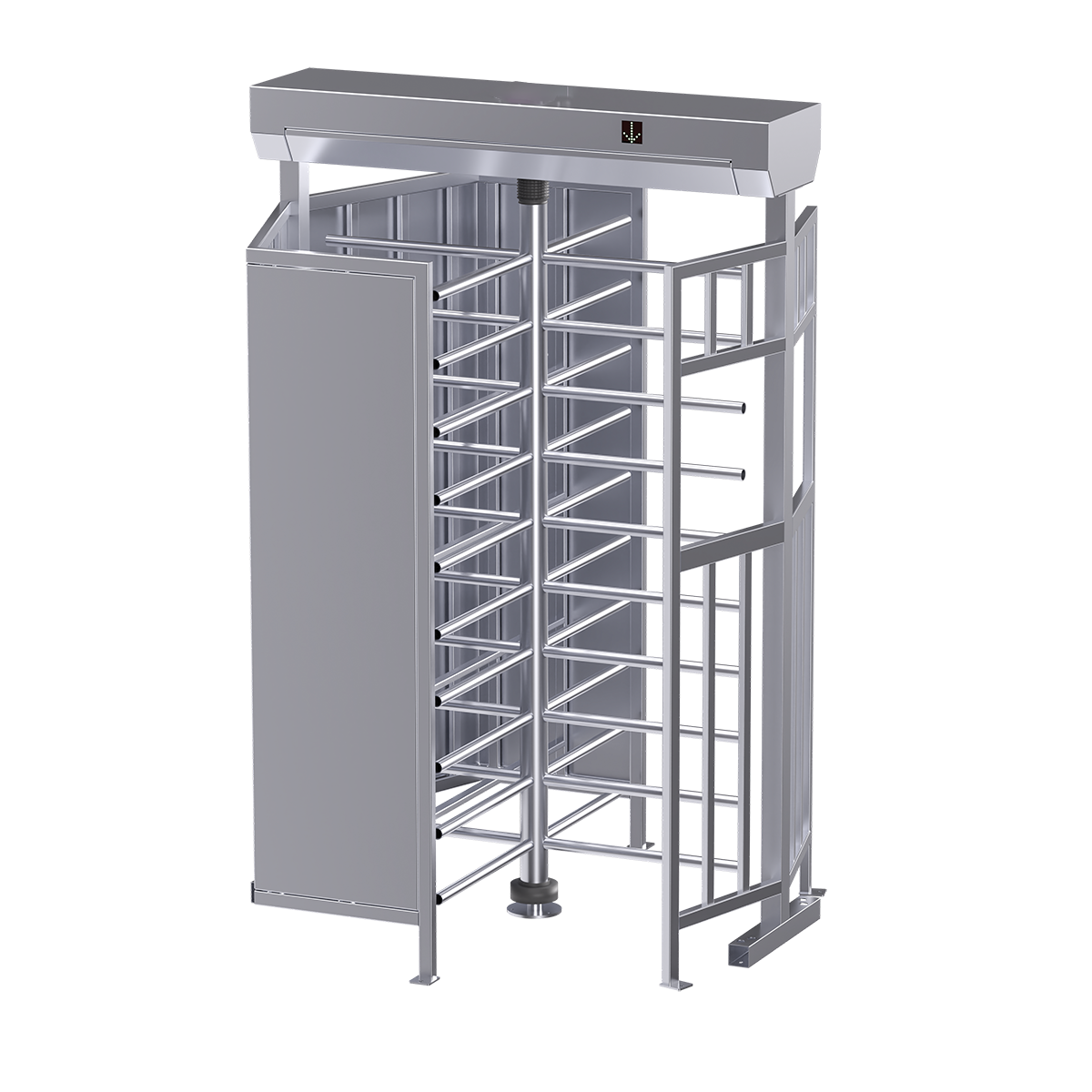

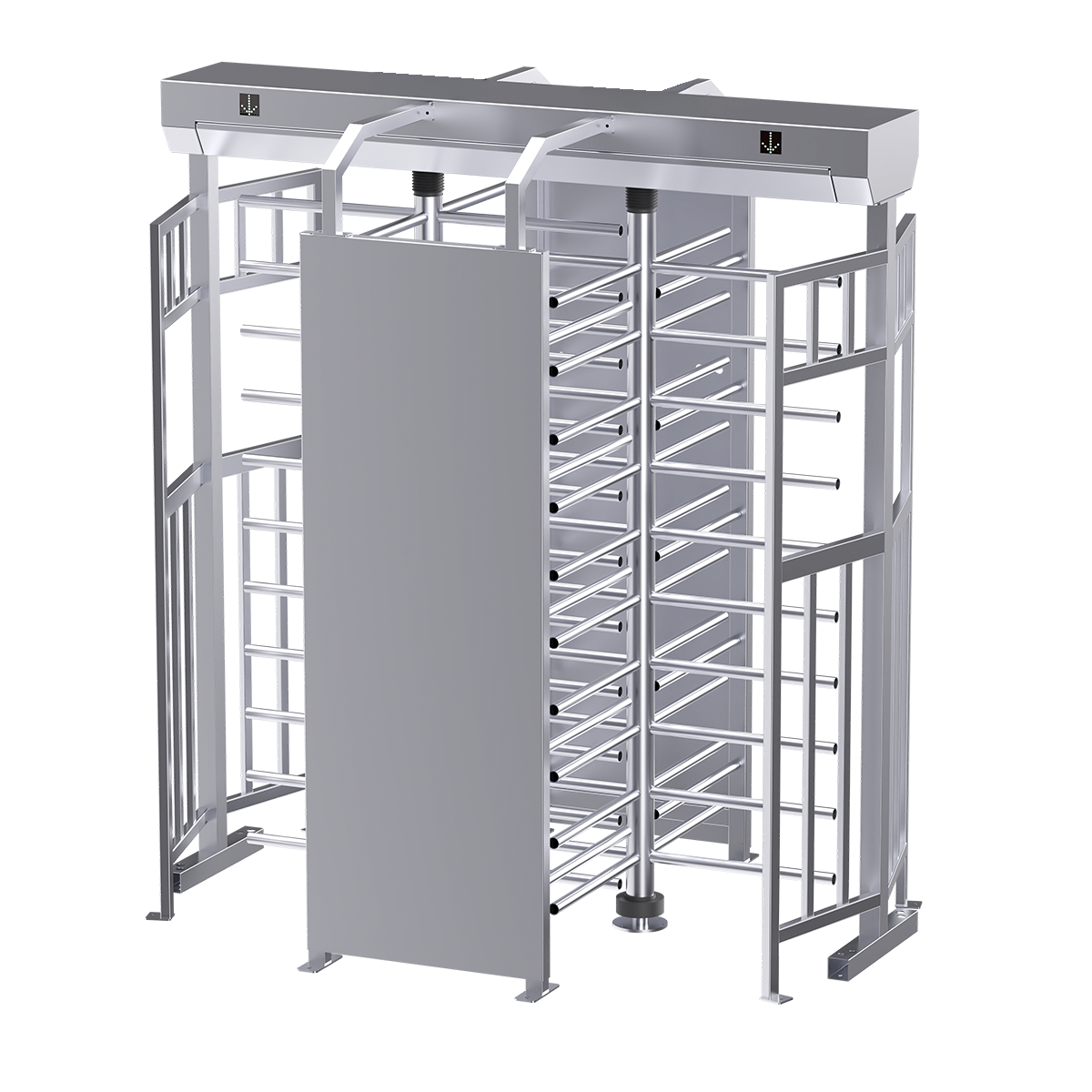

BL 1S and BL 2S full-height turnstiles with four-section rotors are robust access control devices that are perfectly suited for use in sports facilities, meeting the required safety and functionality standards. Equipped with a four-arm rotor, they provide effective and precise pedestrian traffic management, which is especially important in high-traffic areas such as stadiums and sports halls.

Thanks to a motorized mechanism, the rotor movement is smooth and user-friendly, enhancing the comfort of passage and improving throughput. The turnstiles are built on proven and durable technical solutions that ensure reliability in both indoor and outdoor environments.

BL 1S and BL 2S turnstiles are available in stainless steel or zinc-coated carbon steel, with the option of additional powder coating in any RAL color. The four-section rotor allows for more precise access control, limiting the possibility of unauthorized entry.

Due to their construction and functionality, these turnstiles are particularly recommended for use in sports venues, where high durability, safety, and efficient access control are essential.

Technical Specification

Usage Location indoor / outdoor
Operating Temperature, Humidity -25°C/+50°C (optionally -50°C with heater), relative humidity 80% non-condensing.
Operating Intensity Continuous operation 24/7
Available Mechanisms
Mechanism Operation Method
ZA3 motorized
Pictograms / Lighting Status / Direction Indicators: LED, standard/pictograms
Power Supply Operating Voltage: 24V DC. Power Consumption: ~14W in standby mode, max. ~180W (depending on used options and accessories).
Operating Modes
  • Controlled entry and exit
  • Controlled entry, free exit
  • Free entry, controlled exit
  • Single entry, use in both directions
  • Free entry and exit
Control System All functions, parameters, and operating modes can be changed via LED display and control panel manipulator.
Throughput Passage capacity: max. 40 cycles/min. Nominal: ~20 passages/min. for single passage
Emergency Mode The system allows free flow (entry-exit) in both directions (emergency mode).
Power Failure The system allows free flow in both directions (safe open mode).
Weight ~210 kg  BL 1S / 380 kg for BL 2S
Optional Features, Accessories Counter (with/without reset), card reader mounting bracket, roof, platform.
