BA3-1-I
electrical

Full height turnstile

Product Description

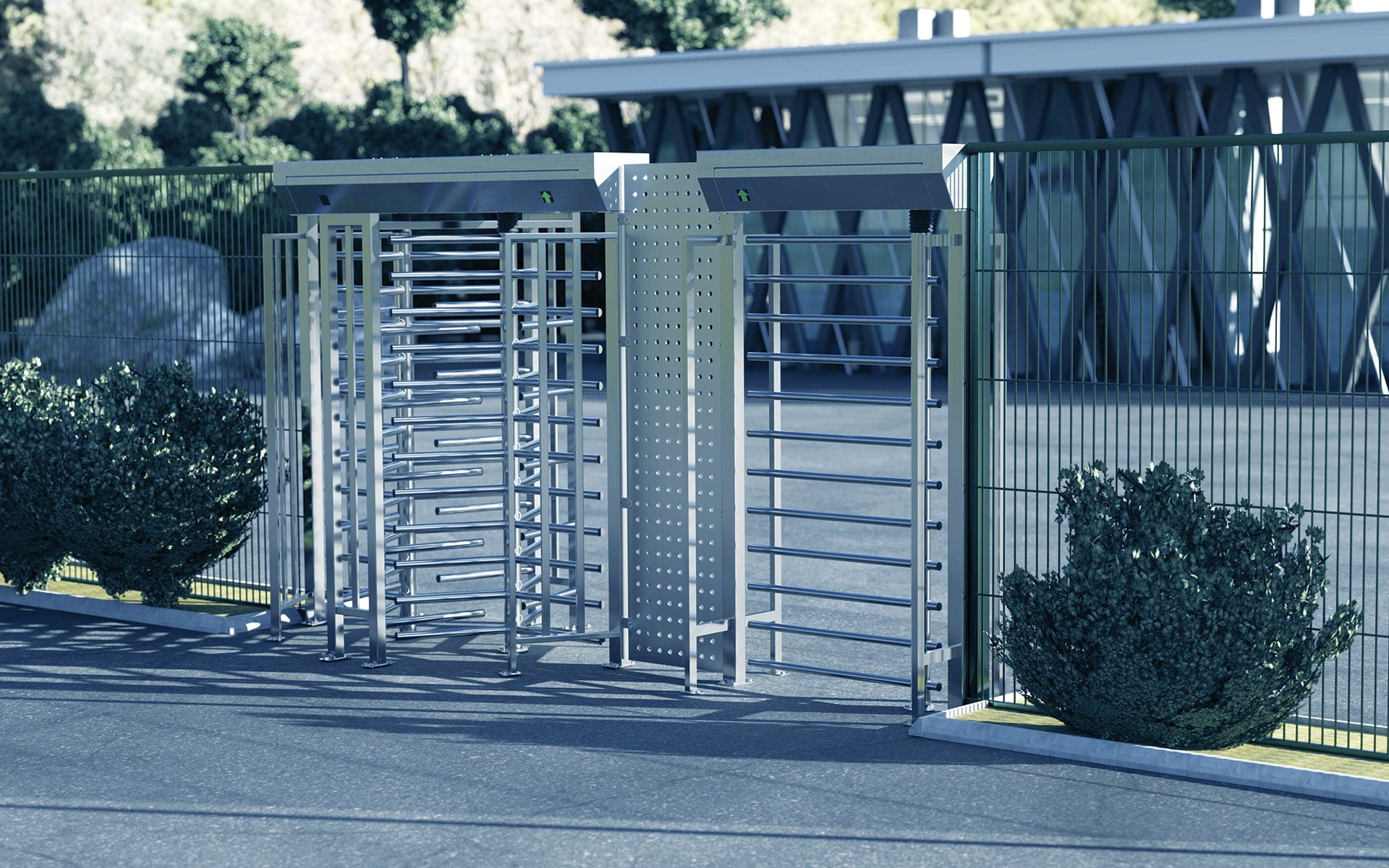

The BA3-1-I is a specialized, single-lane full height turnstile designed as a supportive device for access control systems, perfectly balancing security with high accessibility. Based on the "Road Pass" concept, this model focuses on providing a non-contact and convenient experience for all users. Its unique design features one hinged rotor section, allowing for the seamless and contactless passage of disabled persons (including wheelchair users) and the easy transmission of luggage or bulky goods.

Unlike standard high-security models, the BA3-1-I is engineered to facilitate traffic flow in guarded passageways while eliminating architectural barriers. It is a "technology for everyone" solution, ideal for facilities where professional logistics support and unrestricted access for people with reduced mobility are as important as the access control itself.

Examples of use:
Supportive ticket and passenger control points (airports, seaports).
Passages for authorized personnel and disabled persons in state offices and public utility buildings.
Handling deliveries and goods transport in museums, theaters, and exhibition centers
Barrier-free access zones at sports facilities, swimming pools, and stadiums.
Access and time attendance control points in offices and factories requiring wide logistical passage.

Technical Specifications

Product Model:

BA3-1-I (Road Pass Series).

Device Type

Single full height turnstile, designed to support access control.

Key Functionality

Road Pass – hinged rotor section for contactless wheelchair access

Power Supply

24V AC/DC

Max Power Consumption

2.5 A

Operating Temperature

-25° to +50°C (-13° to 122°F)

Ingress Protection

IP 43 rated for environmental resistance

Construction Material

Outer housing made of AISI 304 stainless steel

Dimensions

Height 2508 mm, Width 1524 mm, Depth 1362 mm.

Passage Width

Optimized for disabled users and goods (937 mm / wide passage when rotor is hinged).

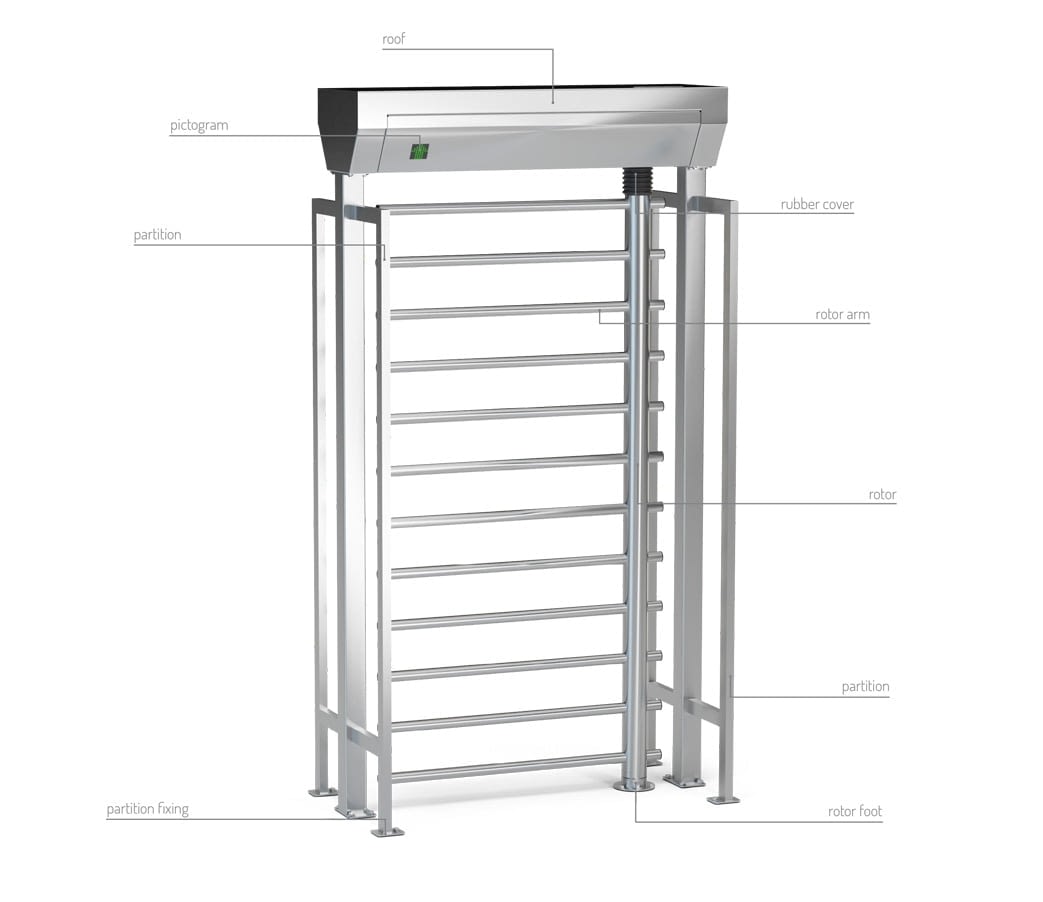

Mechanism Features

Electromechanical arm movement assistance

Safety Integration

High-priority fire alarm input and "Free Exit" mechanism during power failure.

Operating Modes

Bidirectional control, single-direction traffic, or permanent blockade.
