BA3-2-I

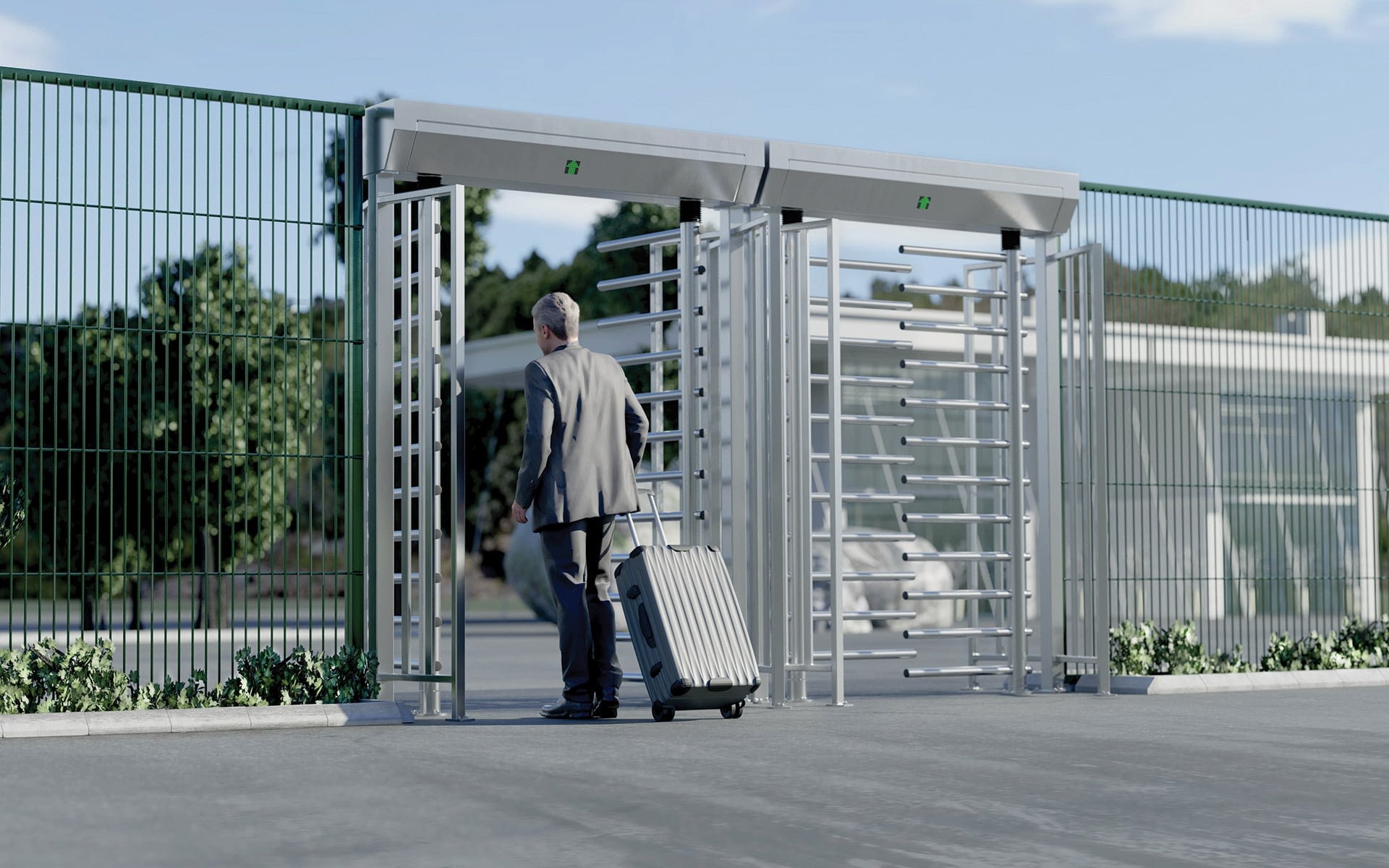

Single, broad passsageway, full height turnstile. One section rotor enables contactless passage/transmission of ADA or with an extra luggage. The device designed to assist pedestrian access control at guarded passage ways. Examples of use: control ticket points and access control for passenger traffic; airports/seaports; passages for authorised staff, directing passanger traffic; access control points in secured buildings (e.g. state offices such as border crossing points, other services); ticket control points and fees at museums, theatres, cinemas, exhibition centers, fair areas, show facilities, pay toilets, ticket control points at sport facilities, e.g. swimming pools, stadiums, other sports and show facilities; access and time attendance control points in working places, e.g. offices, dedicated areas in factories.).

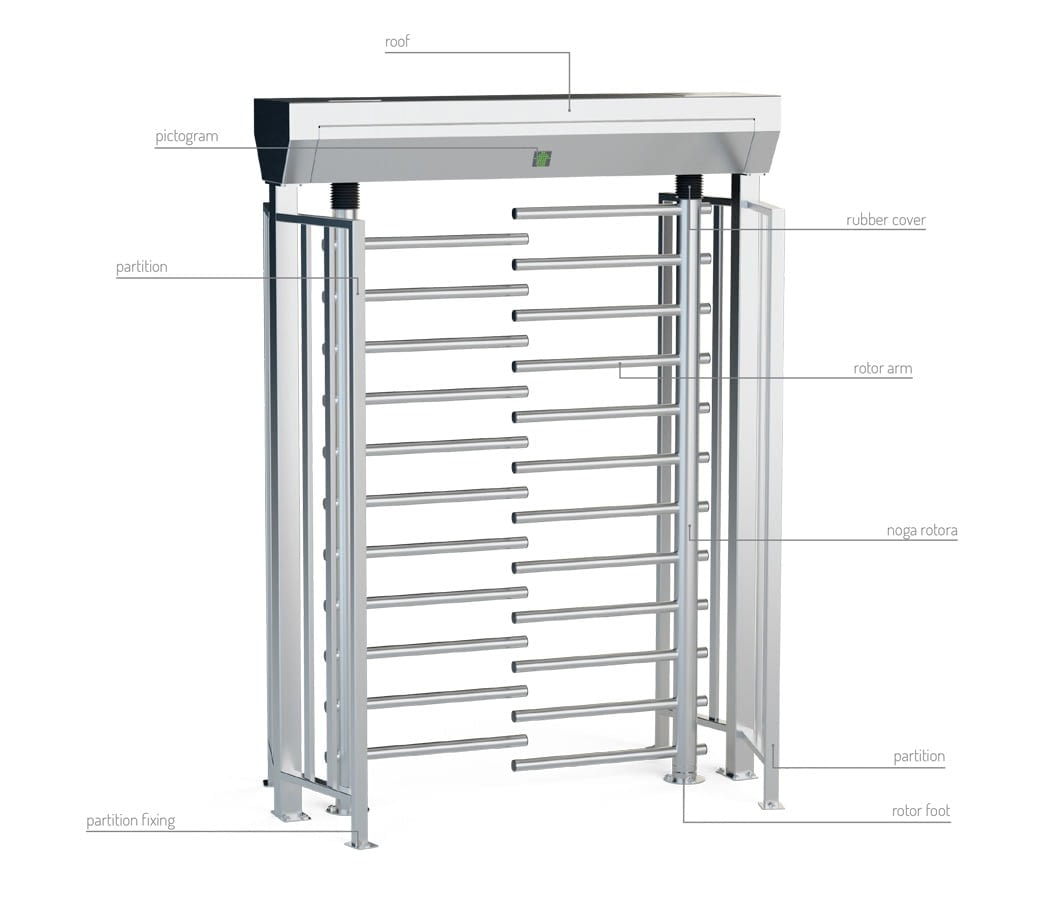

Device description

Functions

NEW ELECTRONIC SYSTEM

The display allows you to change the configuration by setting in the program MENU. Readable MENU along with the possibility of changing many parameters of the device.

LED PICTOGRAMS

Visual information identifies unlocking or locking status of the device arms’ movement. Green arrow indicates that the mechanism locking system is unlocked. Red cross indicates that the mechanism locking system is locked.

ENTRY AND EXIT CONTROL

The device’s mechanism is equipped with a system supporting pedestrian traffic control in both traffic directions (entry/exit from the control zone).

BACKWARD MOTION LOCKING

Locking the backward motion disables the arms rotation in the direction opposite to the one defined by the external controlling device. The blockade is to make it difficult to pass 2 people on the basis of a single authorization signal for the transition from an external device.

ARM MOTION BOOSTER

The mechanism of the device is equipped with an electromechanical system supporting the rotary movement of the arms. This system, after applying force to the rotor’s arm (thrust), switches on the engine, which helps rotate the rotor to the starting position.

Inox

Galvanized

Galvanized + RAL (duplex)

RAL 5010

RAL 9003

RAL 7016
