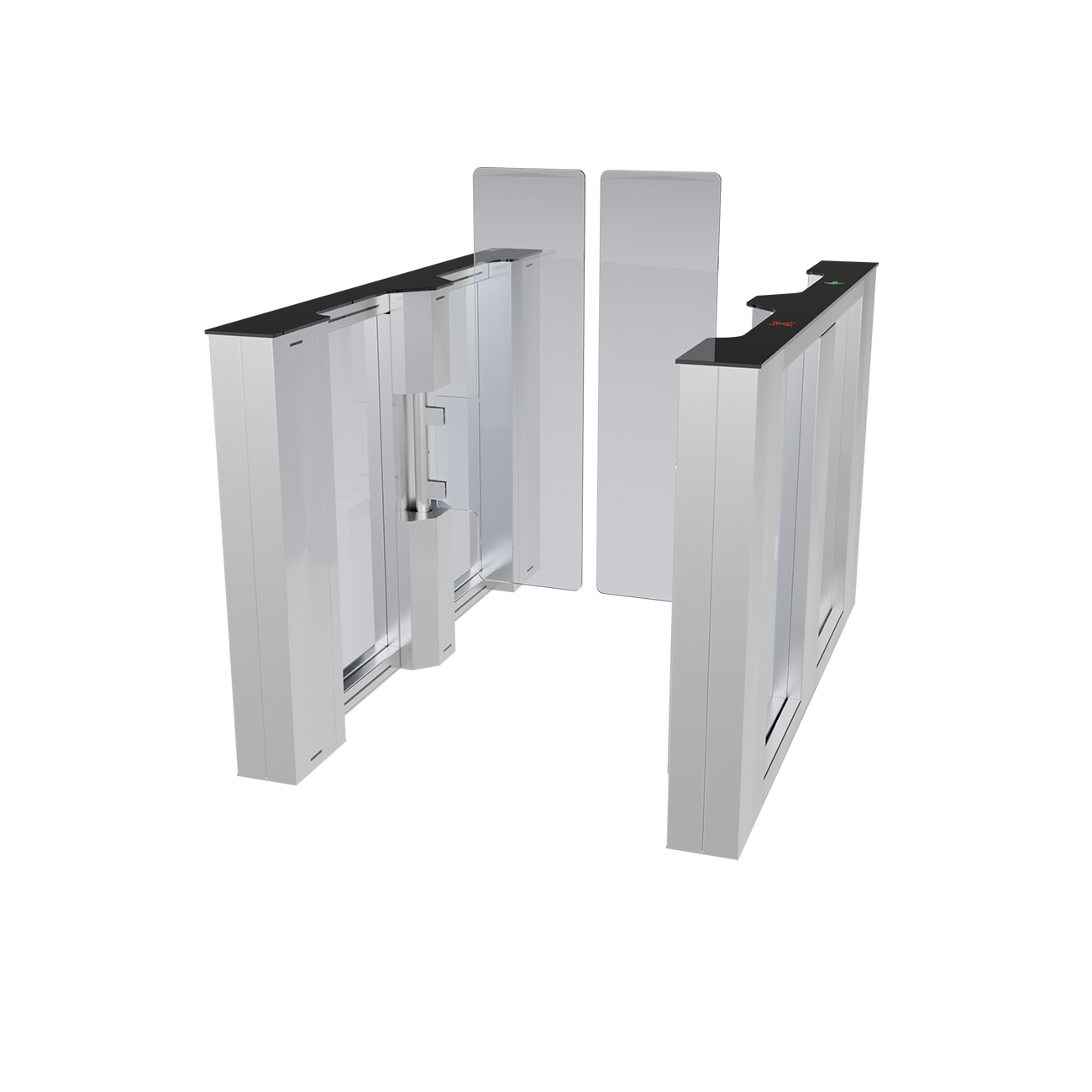

Speedgate SG5 – Modern Gate for Efficient Pedestrian Access Control

The Speedgate SG5 is a technologically advanced turnstile designed for fast and secure access control in high-traffic environments. With its modern design and high-quality materials, the SG5 ensures smooth pedestrian flow and a high level of security.

The gate can be equipped with advanced access control systems such as QR code readers, RFID, and other identification technologies.

It is an excellent solution for business centers, government buildings, transportation hubs, and other public spaces.

Device Features







Application
Indoor




Operating Conditions
-25°C/+50°C (optionally -50°C with a heater), relative humidity 80% without condensation.




Operation Intensity
Continuous operation 24 hours a day










Pictograms / Lighting
Status Indicators – Direction: LED, standard/pictograms




Power Supply
Operating Voltage: 24V DC.

Energy Consumption: ~14W in standby mode, max. ~180W (depending on used options and accessories).




Operating Modes
Controlled entry – controlled exit

Controlled entry, free exit

Free entry, controlled exit

Single entry, use in both directions

Free entry – free exit




Control System
Screen with a keypad for configuration and device settings.

Control possible via dry contact (ground control).

Feedback signal indicating person passage.

Compatible with access control devices designed for gate control.




Throughput
max. 20 cycles/min. Nominal: ~10 passages/min.

(Nominal throughput may vary depending on the access control system used).

Safe estimate: 10 passages/min.




Weight
~175 kg




Optional Features, Accessories
Counter (with/without reset), card reader mounting bracket, various color options (RAL).

























Ask about BIM files and technical drawings DWG.


























































































    Device Features




















    Passage width: 650 mm [25.6 in] or 900 mm [35.43 in]
    Panels: low 905 mm [35.6 in] or high 1300 mm [51.2 in]
    New control electronics – available in the device’s leg
    System of sensor
    LED pictograms









































    Quiet and fast operation, modern design.
