Speed gates

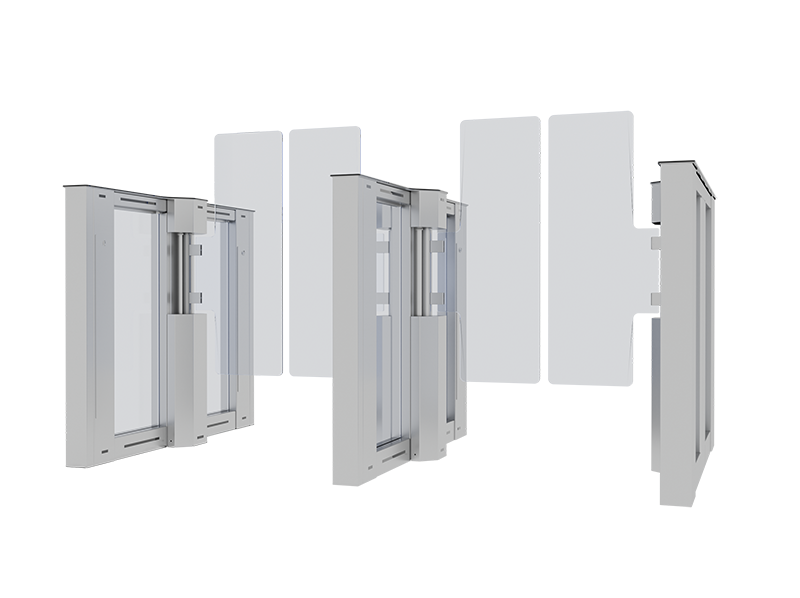

SG-2
perfect design, advanced technical solutions

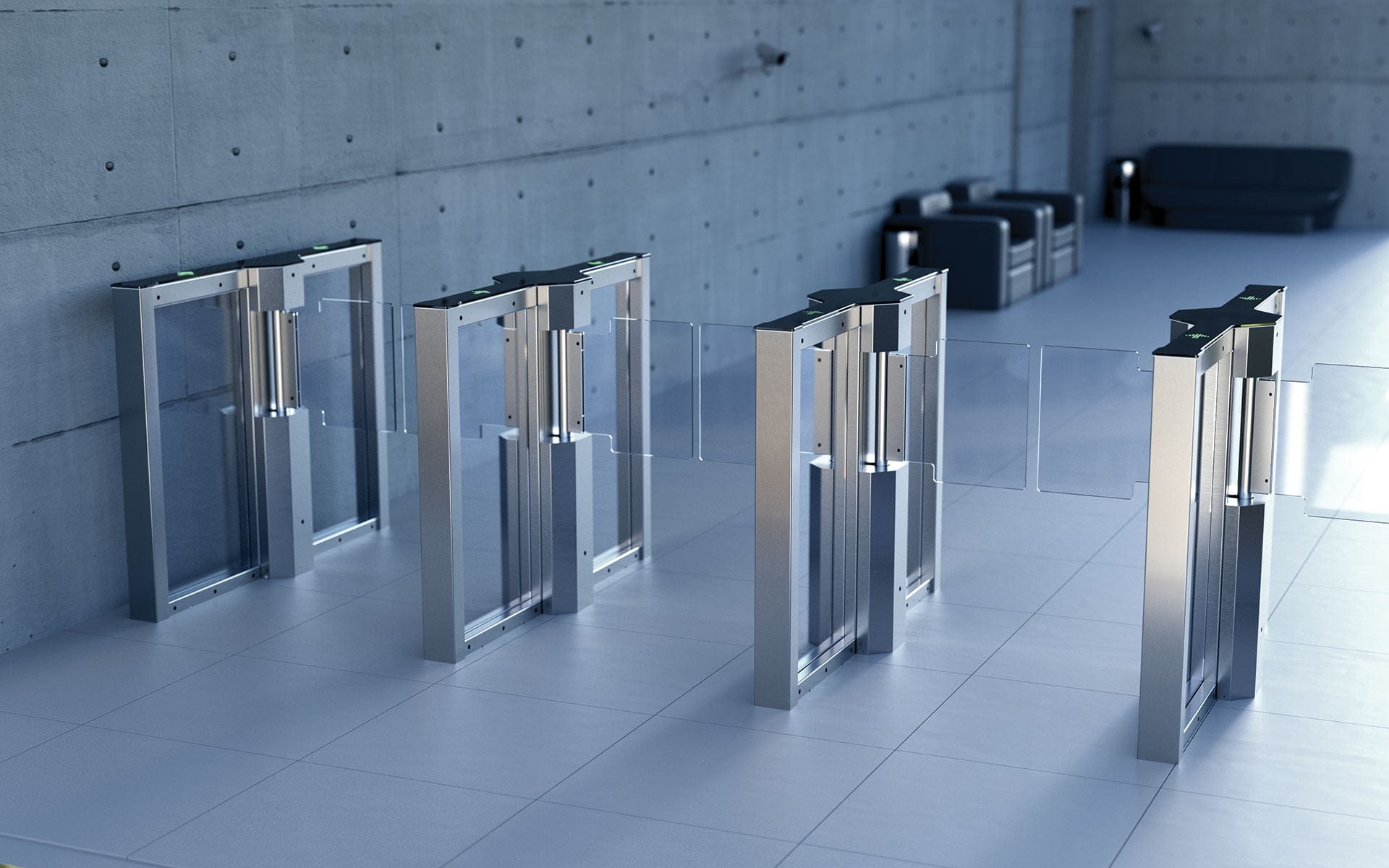

Speed Gates SG-2 are modern and proven solutions that support access control in secured indoor spaces. With touchless operation, they provide high throughput, full movement monitoring, and reliable performance. Their elegant design and functionality make them an ideal choice for offices and premium facilities.
Device Features
| Application | Indoor |
|---|---|
| Operating Conditions | -25°C/+50°C (optionally -50°C with a heater), relative humidity 80% without condensation. |
| Operation Intensity | Continuous operation 24 hours a day |
| Pictograms / Lighting | Status Indicators – Direction: LED, standard/pictograms |
| Power Supply | Operating Voltage: 24V DC. Energy Consumption: ~14W in standby mode, max. ~180W (depending on used options and accessories). |

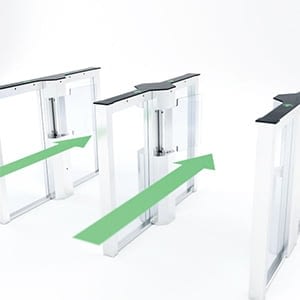

| Operating Modes | Controlled entry – controlled exit Controlled entry, free exit Free entry, controlled exit Single entry, use in both directions Free entry – free exit |

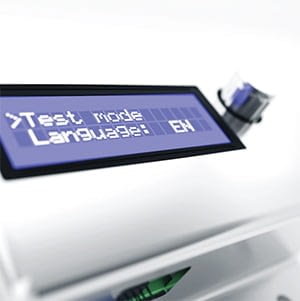

| Control System | Screen with a keypad for configuration and device settings. Control possible via dry contact (ground control). Feedback signal indicating person passage. Compatible with access control devices designed for gate control. |
| Weight | ~175 kg |
| Optional Features, Accessories | Counter (with/without reset), card reader mounting bracket, various color options (RAL). |
Key Features of SG 2
• Passage width of 650 or 900 mm
• Intuitive user guidance

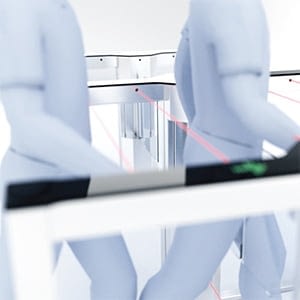

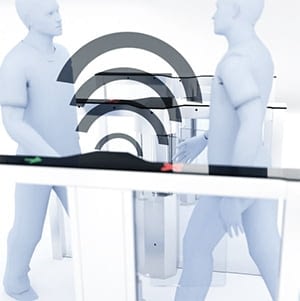

• Sensors detecting unauthorized passage attempts, ensuring security and object detection
• Easy installation and configuration
• Spacious housing allowing flexible positioning of access control devices
• High-quality materials ensuring durability and aesthetics

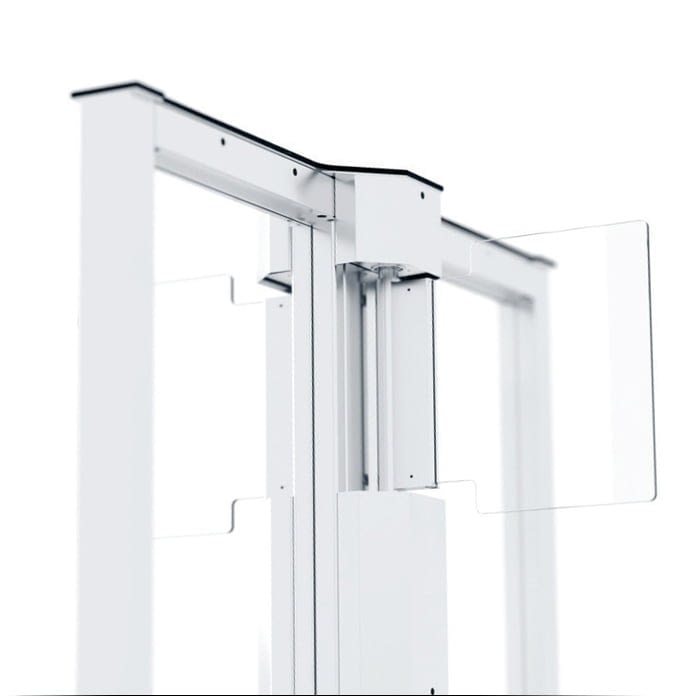

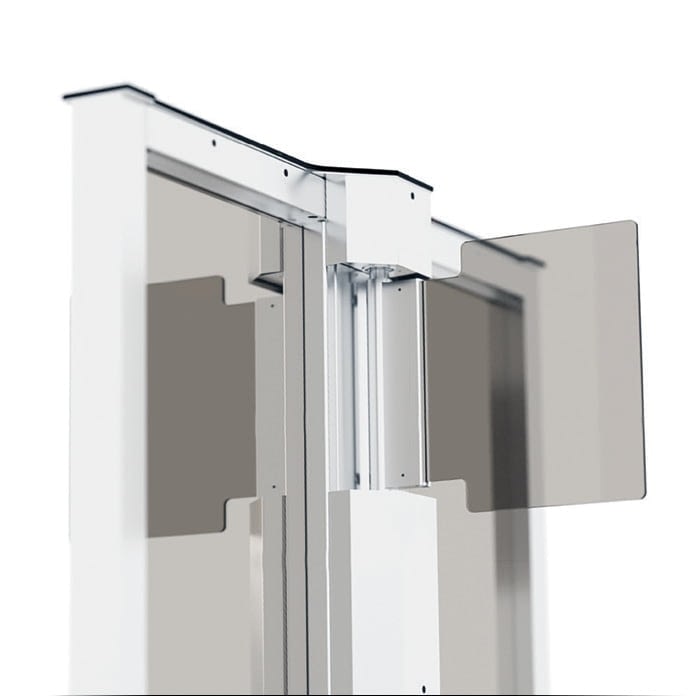

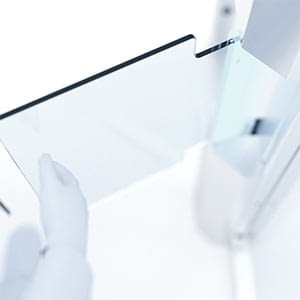

• Smooth movement of swing glass barriers
• Ergonomic housing with an elegant design
• Flexible passage configuration options

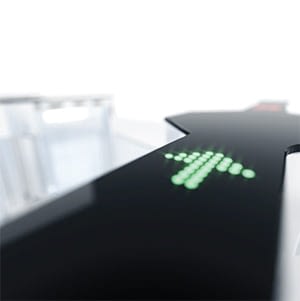

• Universally understandable symbols and LED direction indicators
SG 2 is the perfect combination of innovative design, advanced technology, and ease of use. It supports comprehensive security systems, enhancing comfort and protection in any environment.

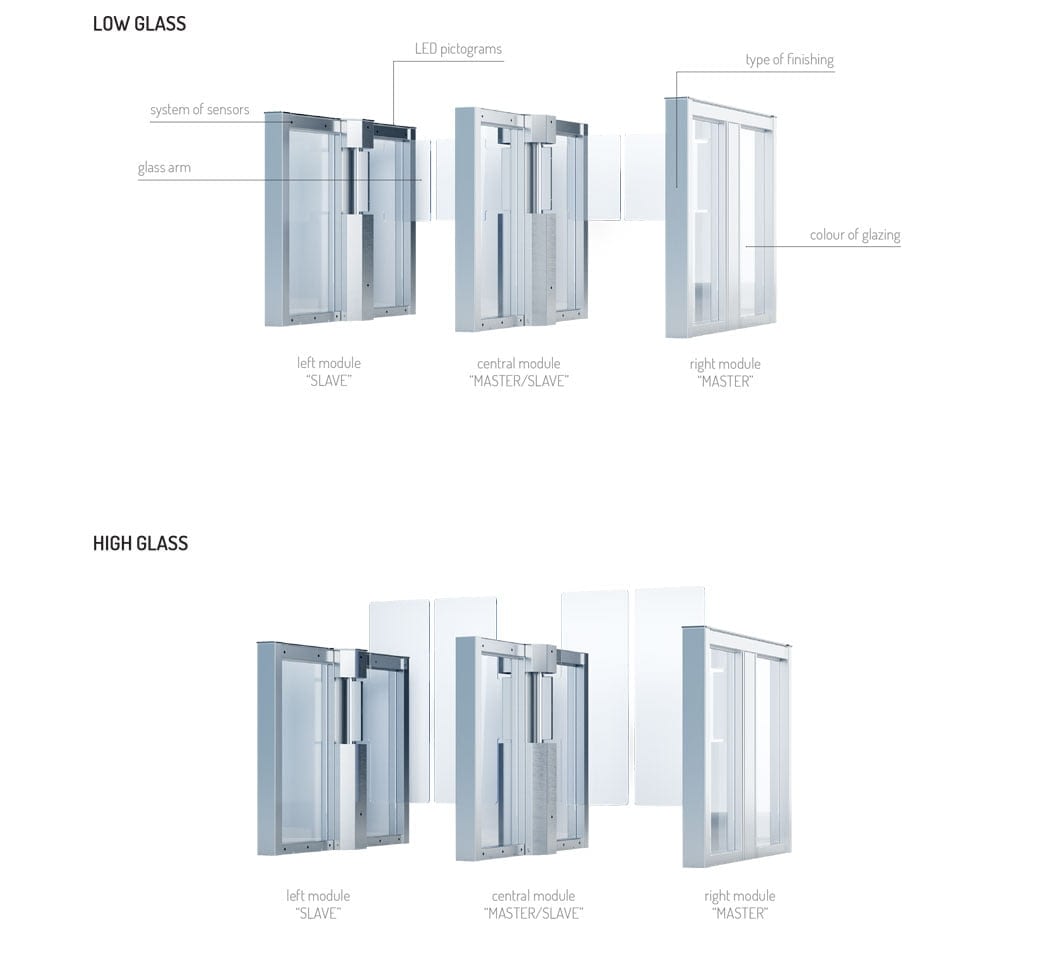

Modules
VERSIONS WITH WIDE PASSAGE
SG 2 passages with a width of 900 or 915 mm are designed with accessibility in mind, meeting the needs of people with disabilities. They feature a low threshold, ergonomic design, and an optional automatic opening system, making them easy to use. The use of non-slip materials and robust construction ensures safety and durability.
For wider passage options, please consult a technical advisor.
