Speed gates

SG-3

perfect design, advanced technical solutions

SG3 gates are technologically advanced access control devices that combine modern design with reliable functionality.

The SG3 model stands out with its sleek, rounded form that reflects a modern aesthetic.

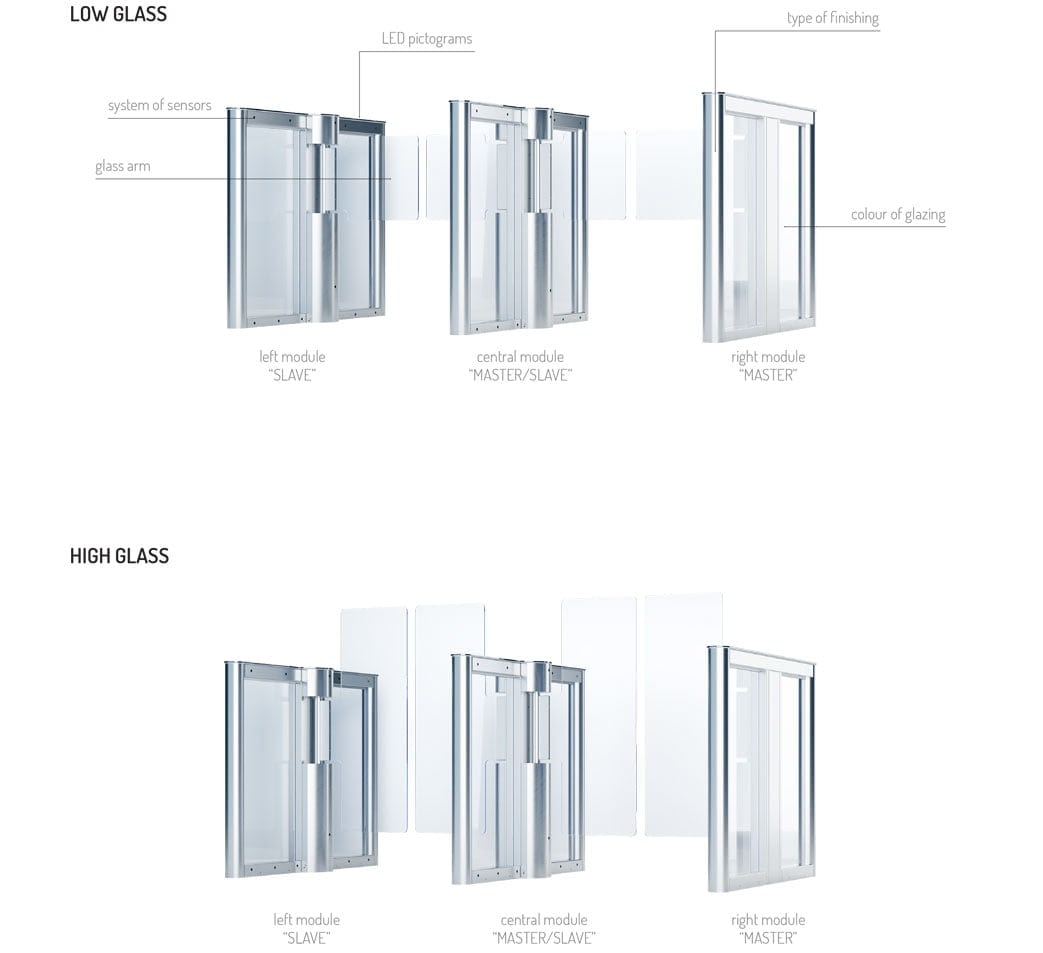

Modules

Device Features


Application Indoor
Operating Conditions -25°C/+50°C (optionally -50°C with a heater), relative humidity 80% without condensation.
Operation Intensity Continuous operation 24 hours a day
Pictograms / Lighting Status Indicators – Direction: LED, standard/pictograms
Power Supply Operating Voltage: 24V DC.
Energy Consumption: ~14W in standby mode, max. ~180W (depending on used options and accessories).
Operating Modes Controlled entry – controlled exit
Controlled entry, free exit
Free entry, controlled exit
Single entry, use in both directions
Free entry – free exit

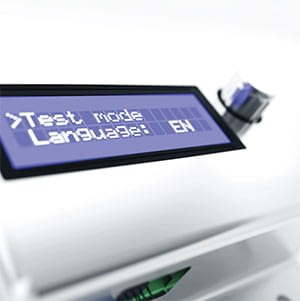

Control System Screen with a keypad for configuration and device settings.
Control possible via dry contact (ground control).
Feedback signal indicating person passage.
Compatible with access control devices designed for gate control.
Weight ~175 kg

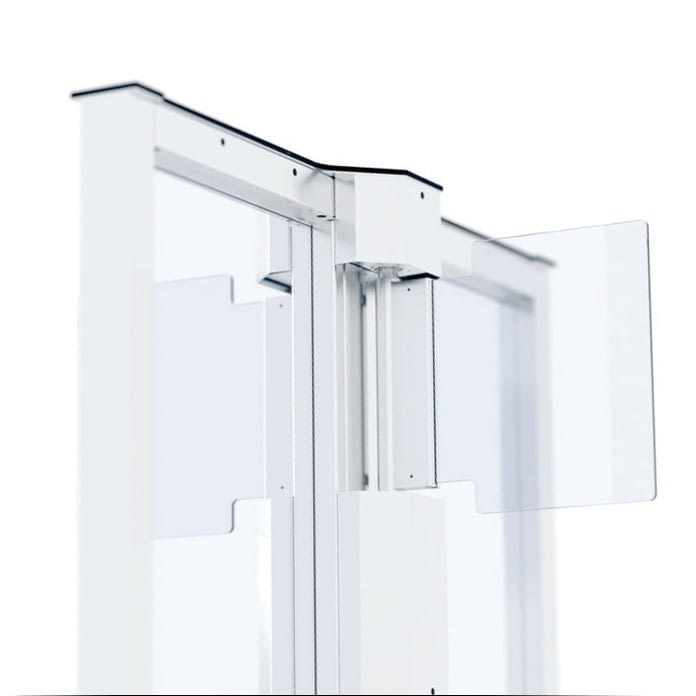

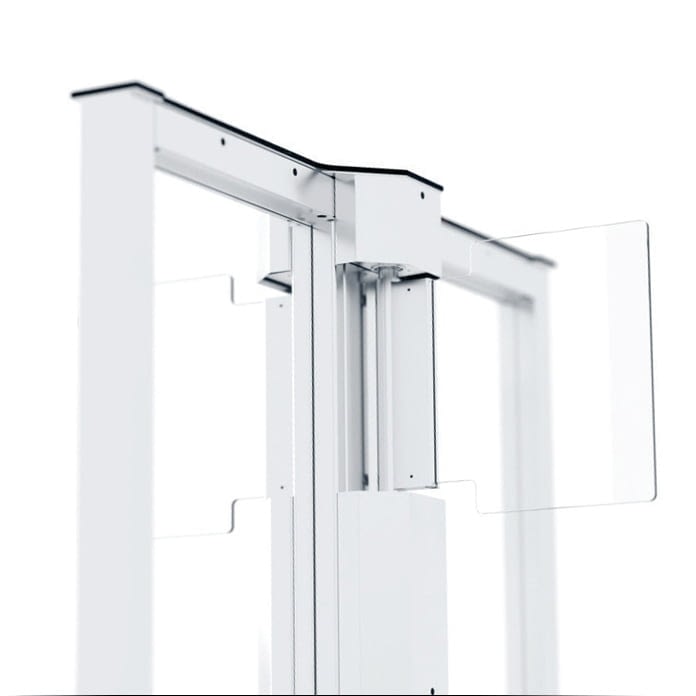

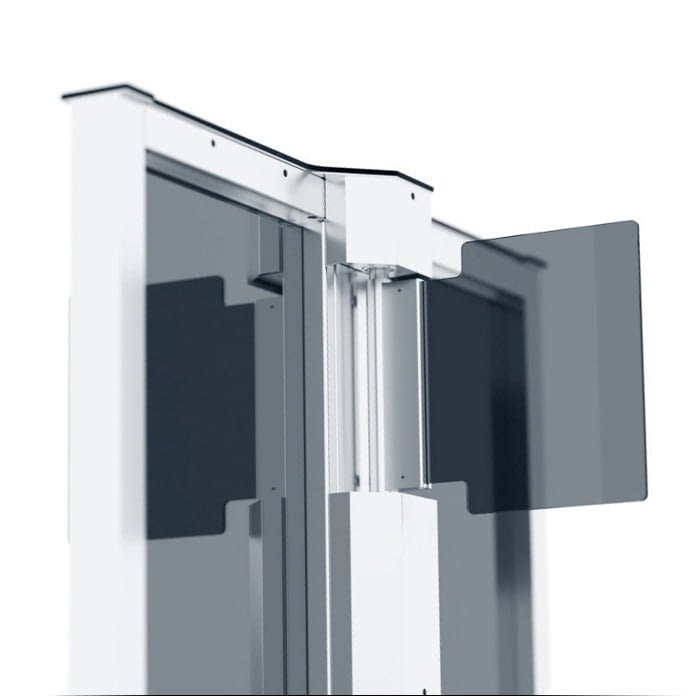

Optional Features, Accessories Counter (with/without reset), card reader mounting bracket,  various color options (RAL).

Ask about BIM files and technical drawings DWG

    Key Features of SG 3

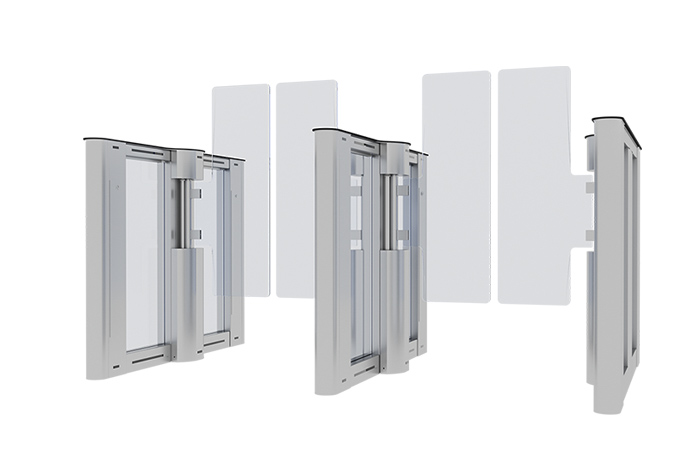

    • Passage width of 650, 900 or 915mm

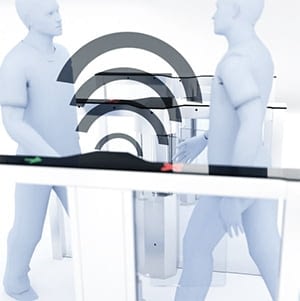

    • Intuitive user guidance

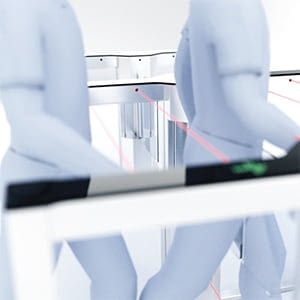

    • Sensors supporting the detection of tailgating attempts
    • Easy installation and configuration
    • High-quality materials ensuring durability and aesthetics

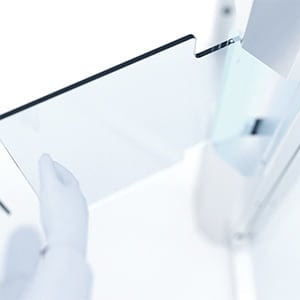

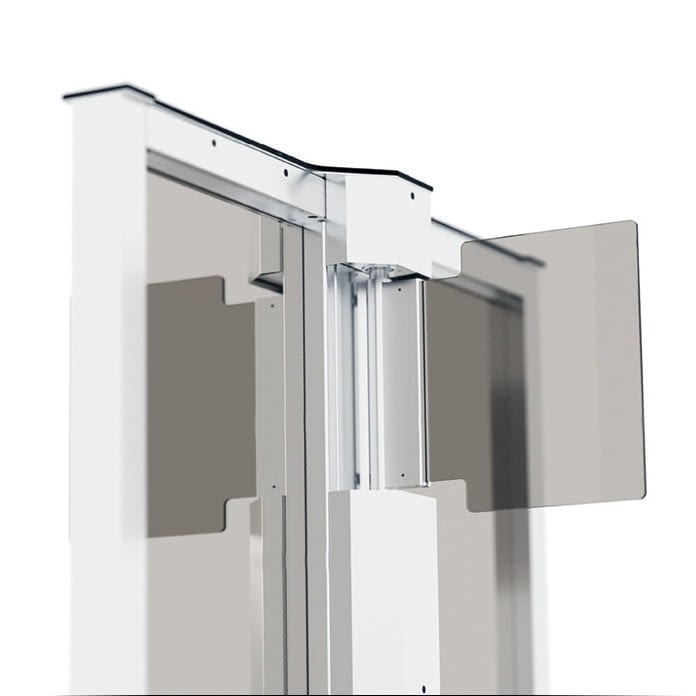

    • Smooth movement of swing glass barriers
    • Ergonomic housing with an elegant design

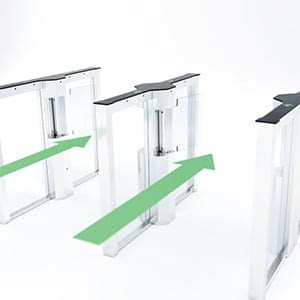

    • Flexible passage configuration options

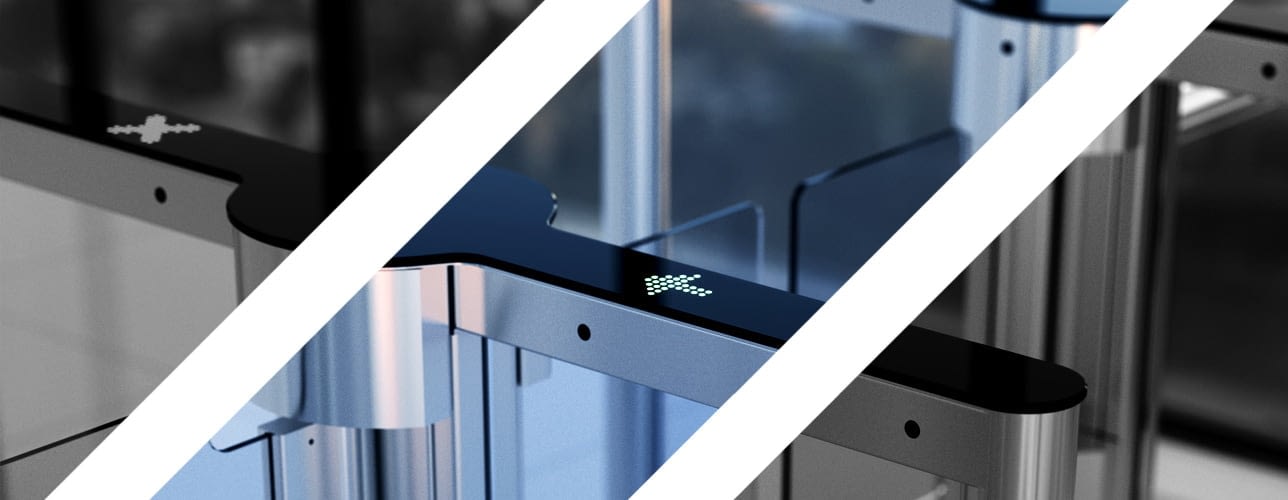

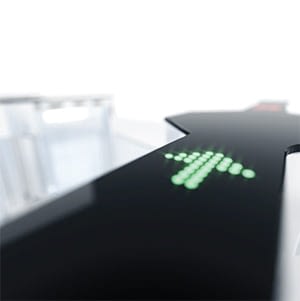

    • Universally understandable symbols and LED direction indicators

    SG 3 is the perfect combination of innovative design, advanced technology, and ease of use. It supports comprehensive security systems, enhancing comfort and protection in any environment.

    PASSAGES WITH A WIDTH OF 900 mm

    SG 3 passages with a width of 900 or 915 mm are designed with accessibility in mind, meeting the needs of people with disabilities. They feature a low threshold, ergonomic design, and an optional automatic opening system, making them easy to use. The use of non-slip materials and robust construction ensures safety and durability.
